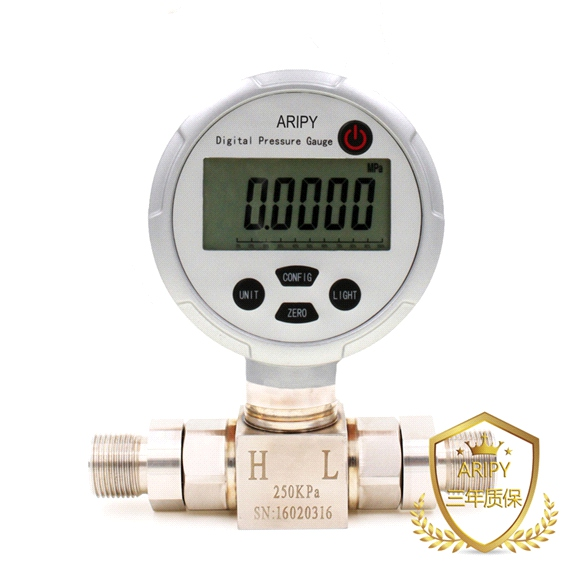

PY806 differential digital pressure gauge is very suitable for liquid and gas media measurement, solving the on-site differential pressure measurement. The product adopts integrated welded structure, high static pressure resistance value,
stable and reliable.
The high and low pressure ends are protected by isolation diaphragms, and both pressure chambers can contact with certain corrosive and conductive fluids, which can be widely used in the industrial process control field for differential pressure measurement.
Applications:
■ Industrial Process Control
■ Differential Fluid Pressure Measurement
■ Gas and Liquid Pressure Measurement
■ Pressure Calibration Instruments
■ Pressure Leakage Measurement
Product Features:
■ Measuring ranges : -0.1 … 20 bar
■ Accuracy: up to 0.02 % F.S
■ Isolated without “O” ring all-welded construction
■ Suitable forfor a wide range of fluid media
■ All stainless steel 316L
■ High static pressure 20MPa
■ For a wide range of fluids
■ Pressure interface threads available
