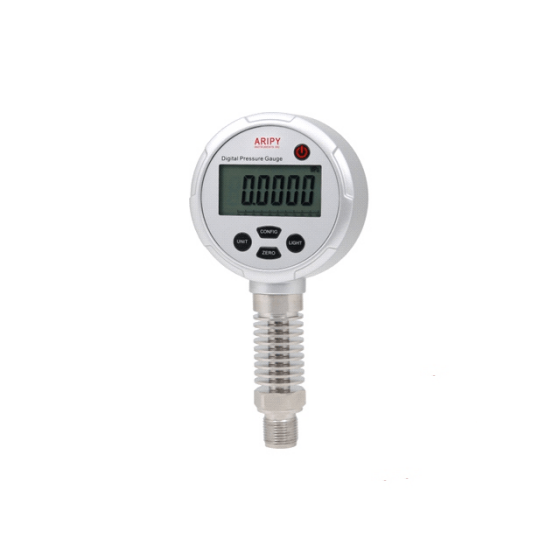

PY808 High Temperature Digital Pressure Gauge

Py808 High Temperature Digital Pressure Gauge selects high temperature resistant pressure sensor as the measuring element and includes a heat dissipation structure. The product has undergone rigorous testing and aging, with stable and reliable performance. Suitable for use in industrial sites, food and pharmaceutical equipment, power generation, machinery manufacturing, steam and heat exchange ﬁelds.

Applications:

■ Steam Pressure Measurement
■ Pressure Measurement at High Temperatures
■ Pressure Leak Measurement
■ Peak Recording Measurement

Product Features:
■ Measuring ranges : -0.1 … 2500 bar
■ Accuracy: up to 0.02 % F.S
■ Stable performance for high-temperature pressure measurement
■ Large 5- or 6-digit digital display
■ Resistant to shock, vibration, and corrosion
■ Micro-power technology, more than 10,000 hours of continuous operation without hibernation
■ Max/min peak recording

■ Pressure types :

Gauge pressure -0.1 ... 2,500 bar
Absolute pressure 0 ... 0.25 bar abs. to 0 ... 60 bar abs.
vacuum and +/- measuring pressure -0.25... 0.25 bar to -1 ... 100 bar
Diﬀerential pressure ±25mbar to ±100mbar

■ Accuracy: 0.02%FS , 0.025 %FS , 0.05 % FS , 0.1 % FS

■ Temperature compensation : -10...50 °C

■ Measuring rate: Max. 10 /s

■ Units : bar ,mbar, Pa, kPa, MPa, PSI, kg/cm², mmH2O, mmHg, inHg

■ Display Type: Multifunctional LCD, 6 digit, with background lighting Functions Bar Graph, Pressure Units, Pressure Measurement, Min/Max, Overpressure Indication 120 % of Full Scale Pressure (F.S)

■ Process connection Thread: 1/4NPT, 1/2NPT, G1/2, G1/4,Others can be customized

■ Material: 316L

■ Auto-oﬀ function: Selectable switch-oﬀ time 5 minutes

■ Battery type: 3x 1.5 V AA and 9vdc external adapter

■ Battery operation: 8,000 h

■ Interface: RS 232 port

■ Heat sink
