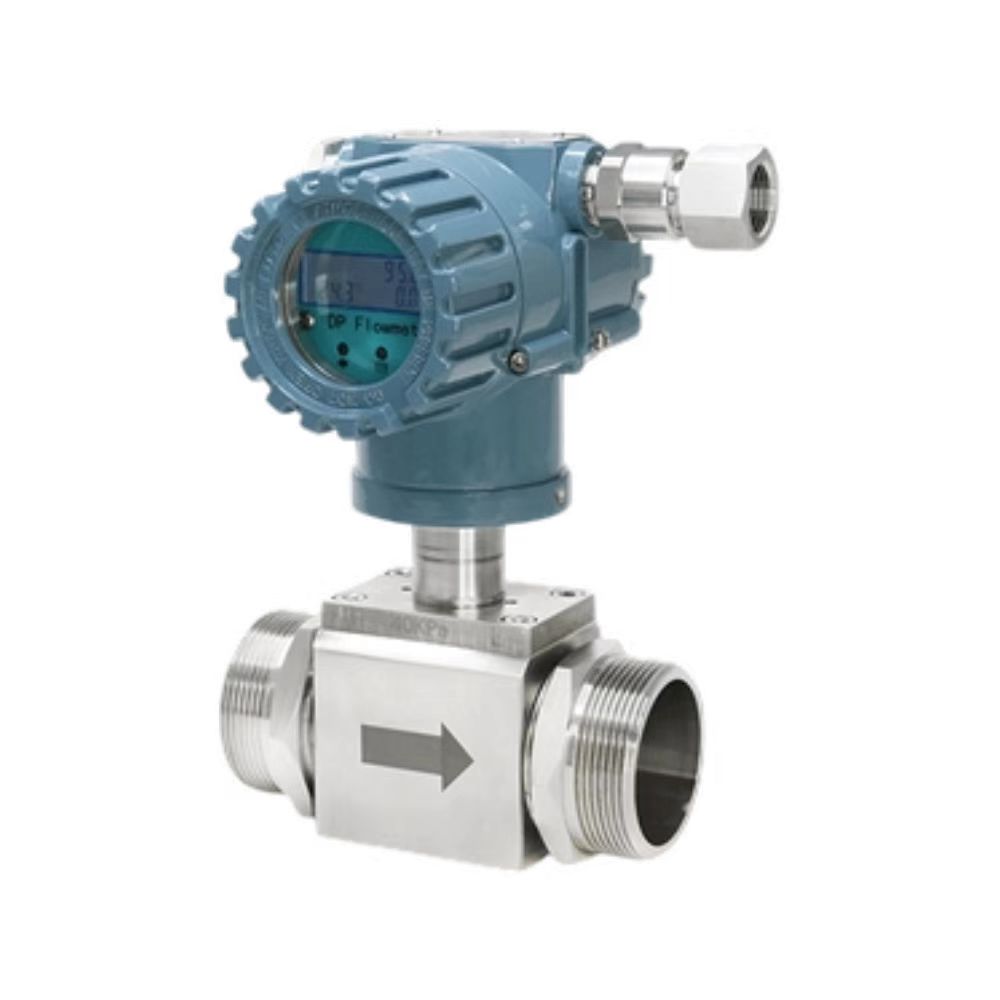

CFMG701 multi-parameter transmitter using the traditional built-in throttle differential pressure principle, when the fluid flows through the throttle will produce a certain differential pressure, through the measurement of the differential pressure value converted to the corresponding flow rate, while the internal circuit can also be measured on the pressure, temperature parameters, and then through the multiple compensation algorithms ultimately derived from the quality of the flow rate, is a practical and economical flowmeter with a micro-intelligent flow measurement system.
Applications:
■ Application: Liquid (water, pure water, distilled water, sewage, alcohol, oil, mixed liquids, etc.)
Gas (air, oxygen, nitrogen, gas, natural gas, CO, mixed gases, etc.)
■ Application: chemical, metallurgy, energy, food, sewage, municipal, energy-saving devices , environmental protection equipment, large-scale equipment, protection, automated factory control,manufacturing, intelligent water, etc.
■ Multi-parameter measurement: with flow. pressure, temperature and other parameters measurement Computer function: with flow correction algorithm, temperature, pressure compensation algorithm, equivalent to the mass flow meter Integrated structure: flow, pressure, temperature integrated package, novel structure, Pressure, temperature and other parameters measurement
■ Computer function: with flow correction algorithm, temperature, pressure compensation algorithm,equivalent to mass flow meter integrated structure: flow, pressure, temperature integrated package, novel structure wide range ratio, high accuracy: range ratio of 20:1, system accuracy of up to 0.5% multi-parameter display at the same time: display the instantaneous flow rate, the cumulative flow rate, the differential pressure, the pressure, the value, the temperature value, etc.
■ Purchase and installation costs are low: buy an intelligent multi-parameter flowmeter, you can save more than one instrument
■ Purchase and installation costs are low: the purchase of an intelligent multi-parameter flowmeter, you can save
more than one instrument easy to install: fast installation, installation, as long as one-step operation can work
liquid – gas measurement conversion is convenient: the purchase of a multi-parameter flowmeter can be used as a liquid measurement can be used as a gas measurement
Product Features:
■ Medium: gas, liquid
■ Caliber: DN80 ~ DN500 (or user-defined)
■ Installation: flange in one
■ Measurement: flow, pressure, temperature
■ Compensation: with temperature and pressure compensation and flow totalization
■ Accuracy: 0.5% (liquid), 1.0% (gas)
■ Range: see range caliber comparison table
■ Differential Pressure: Calculation of the determination of the
■ Pressure: 0-1 ~ 10MPa (optional), precision 0.5%, resolution 0.01MPa
■ Temperature: -10~80℃ (long-term work 0~60℃), precision 1℃, resolution 0.1℃
■ Display: double-row LCD, total total, instantaneous flow, pressure, temperature, differential pressure
■ Output: 4-20mA, RS485 optional
■ Power supply: 3.6V.dc, 24V.dc
■ Protection: IP67
