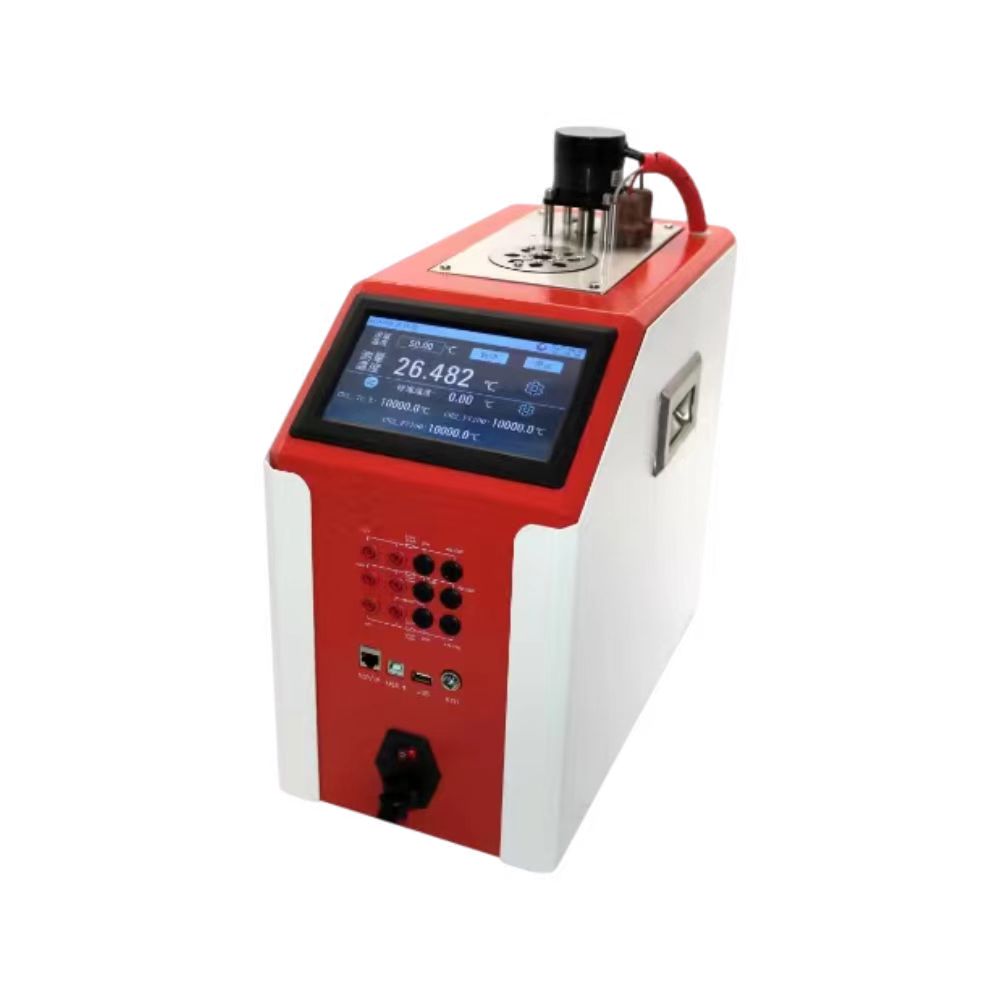

PY855 Portable temperature calibrators
Product Overview
PY855 portable thermostatic calibrators adopts the touch screen design, the interface is intuitive, the operation is simple and convenient. usually use liquid as the working medium, heat the medium through a precise temperature control module, and at the same time use mechanical auxiliary stirring to quickly form a uniform and stable temperature environment in the working area. In this environment, it can be used for the verification/calibration of various temperature instruments (such as: thermal resistance, liquid-in-glass thermometer, pressure thermometer, bimetal thermometer, thermocouple, etc.).
Product Features:
Portable Constant Temperature Oil/Sink :
■ Model:
PY855-300
Medium: methyl silicone oil
Temperature range: +30℃~300℃
PY855-95
Medium: soft water
Temperature range: +15℃~95℃
■ Temperature field uniformity: 0.01℃
■ Temperature fluctuation: 0.01℃
■ Workspace size: φ80*250mm
■ Use ambient temperature: 20~30℃
■ Power supply: AC220V/50Hz
■ Power: 1.2kW
■ Volume: 5L
■ Dimensions (mm): 420*210*460
■ Quality: 15kg
Portable refrigeration thermostat :
■ Model:
PY855-40
Temperature range: -40℃~95℃
PY855-30
Temperature range: -30℃~95℃
PY855-20
Temperature range: -20℃~95℃
PY855-10
Temperature range: -10℃~95℃
PY855-0
Temperature range: 0℃~95℃
■ Medium: Soft water or anhydrous ethanol
■ Cooling method:single stage cooling
■ Temperature field uniformity: 0.01℃
■ Temperature fluctuation: 0.01℃/15min
■ Workspace size: φ80*250mm
■ Use ambient temperature: 20~30℃
■ Power supply: AC220V/50Hz
■ Power: 2.2kW
■ Volume: 5L
■ Dimensions (mm): 510*250*550
■ Quality: 25kg
Custom Manufacturing
When the conventional products can not meet your needs, we can provide you with customized services according to the technical parameters.
