PY803H SERIES

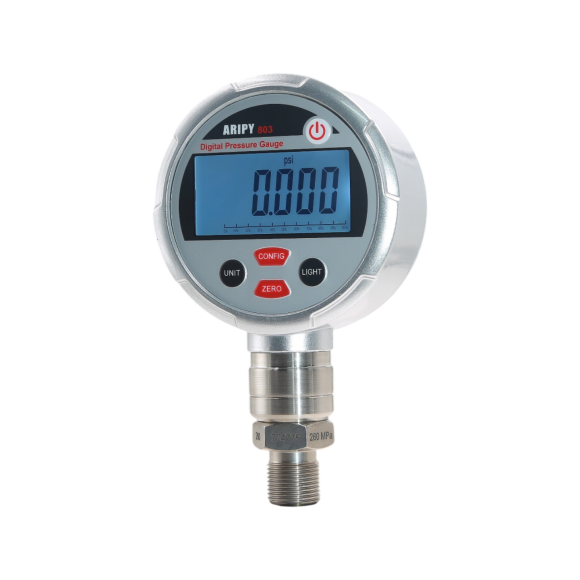

PY803H Digital High Pressure Gauge

PY803H Digital High Pressure Gauge is designed for accurate pressure measurement in high-pressure hydraulic and pneumatic applications. Available with pressure ranges up to 2500 bar and accuracy classes from 0.02% FS to 0.5% FS, it is ideal for industrial process monitoring, laboratory testing and calibration applications.

Accuracy 0.05% FS to 0.5% FS

Pressure Range -1~1600bar / -1~2500bar

Pressure Type Gauge

Output 0–10 V / 0–5 V / More Options

Communication Bluetooth / RS232 / More Options

Typical Applications

Calibration Laboratory Marine OEM

Request a Quote

Technical Specifications

MEASUREMENT PERFORMANCE

Pressure Range

-1~2500bar / -1~1600bar

Pressure Type

Gauge

Accuracy

0.05% FS / 0.1% FS / 0.2% FS / 0.5% FS

FUNCTIONS & DISPLAY

Display

LCD

ELECTRICAL & COMMUNICATION

Output

4–20 mA / 0–10 V / 0–5 V / 1–5 V

Communication

Bluetooth / RS232 / RS485

Power Supply

Battery / 9VDC

MECHANICAL

Process Connection

G1/2 / 1/4 NPT / 1/2 NPT / M20×1.5 / 1/4 BSPP / 1/2 BSPP

Weight

1–3 kg

ENVIRONMENTAL

Operating Temperature

-20~70°C

Protection

IP54

Product Overview

PY803H Digital High Pressure Gauge is a precision digital pressure measuring instrument designed for demanding high-pressure applications. Available with pressure ranges from vacuum to 2500 bar, it provides reliable and repeatable pressure measurement with accuracy classes of 0.05% FS, 0.1% FS, 0.2% FS and 0.5% FS.

Featuring a high-resolution LCD display, optional analog outputs and multiple communication interfaces including Bluetooth, USB, RS232 and RS485, the PY803H is suitable for industrial automation, hydraulic systems, pressure calibration laboratories and process control. It is an ideal solution for users requiring accurate digital pressure monitoring and data acquisition.
