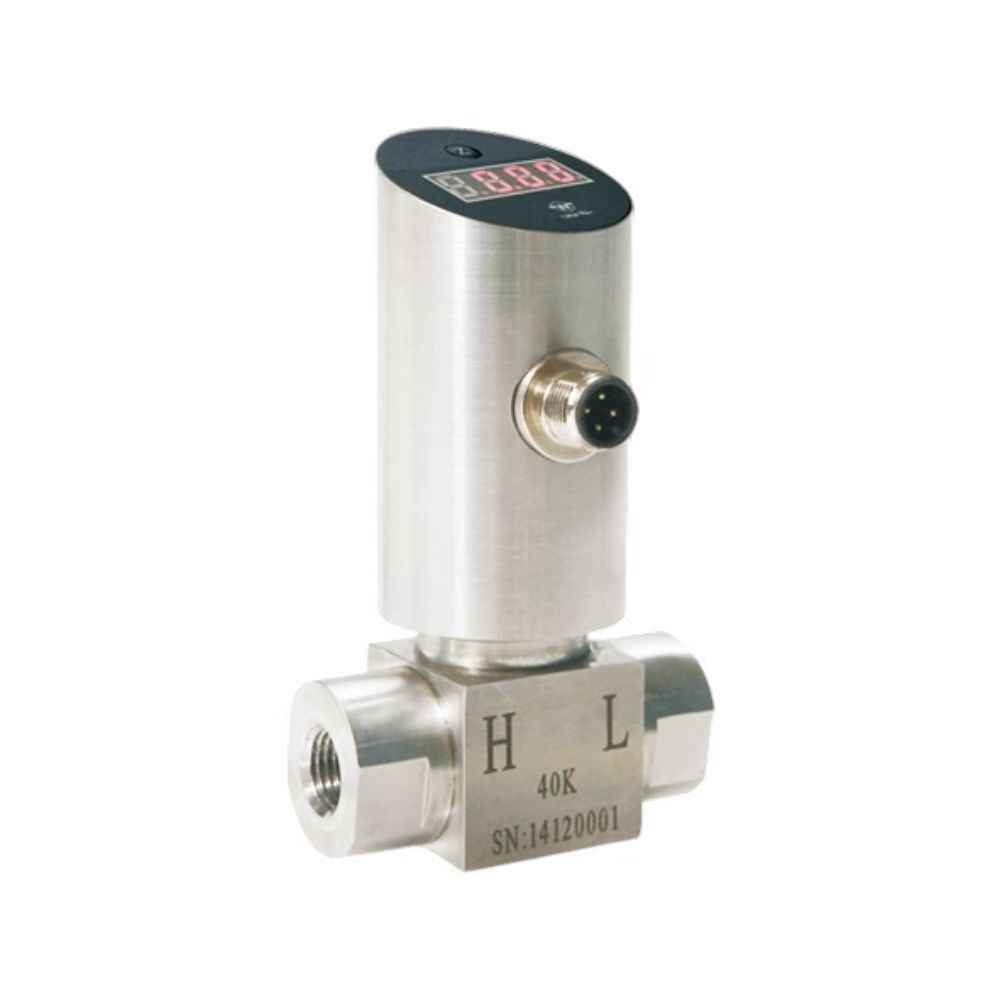

PT686 electronic pressure switch adopts monocrystalline silicon sensor technology and integrated housing process for stable performance and strong anti-interference ability.
Adopting OLED display mode, 180 degree rotatable and rich menu content. Two-way NPN or PNP output, very suitable for field applications.
Applications:
■ Process control systems
■ Hydraulic and pneumatic equipment
■ Petroleum industry
■ Chemical industry
■ Automated production lines
Product Features:
■ Measuring range: 12mbar-10bar
■ Output signal: 4-20mA, 1-5VDC, Modbus- RTU/RS485,PNP or NPN output, customer
■ Reference accuracy: 0.1% URL
■ Stability: ±0.2% URL/ 5 years
■ Media temperature: -40-120℃
■ Process connection: Standard G1/4(M), G1/2(M), M20*1.5(M), optional
■ Electrical connection: Aviation plug, M12*1 (5 pins)
■ Display module with 355° rotation
■ Monocrystalline silicon technology pressure sensors
■ Three-key parameterization with isolated magnetic induction outside the housing
■ Transient voltage protection terminals
