PY101 Pressure Transmitter

PY 101 Pressure Transmitter is a compact, precision designed, highly integrated structure with full digital temperature compensation and calibration. Suitable for a variety of pressure monitoring and measurement in general industrial settings. PY101 can measure gauge, absolute and mixed pressures. Anti-interference, overload and shock resistance, small temperature drift, high stability. In the realization of high reliability at the same time, also has a very high cost-eﬀective.

Applications:

■ Refrigerating System
■ Hydraulic Pressure & Pneumatic Device
■ Measurement & Control
■ Mechanical Equipment
■ Pump & Compressor
■ Pharmaceutic

Product Features:
■ Measuring ranges : -1 …2500 bar
■ Accuracy: up to 0.2 % F.S
■ Integrated chip, wide voltage supply• Compact structure, easy to install
■ High anti-interference capability, lightning protection
■ Current limit, voltage limit, reverse connection protection

■ Pressure ranges: -0.1 ... 2,500 bar

■ Accuracy: 0.05%FS , 0.1%FS , 0.2 % FS , 0.5 % FS

■ Start-up time: 2 seconds, no need to warm up

■ Long-term stability ±0.8: F.S/year

■ Temperature coeﬃcient: 0.3% /10℃ (within -40~85℃, the zero point and the range combined)

■ Power supply: 10~36VDC

■ Analog output: 4〜20mA DC (Load resistance ≤750Ω ) , 0〜10 mA DC (Load resistance ≤1.5KΩ ), 1〜5V DC (Load resistance ≥250K ) , 0〜5V DC (Load resistance ≥250K )

■ Overpressure: 5bar or 3×FS, whichever is smaller

■ Electrical connection: Hirschmann connector, waterproof connector optional

■ Thread: 1/4NPT, 1/2NPT, G1/2, G1/4,Others can be customized

■ Material: 304

■ Ambient conditions: -20...70°C with air humidity ≤95%r.h.

■ Weight: 250 g

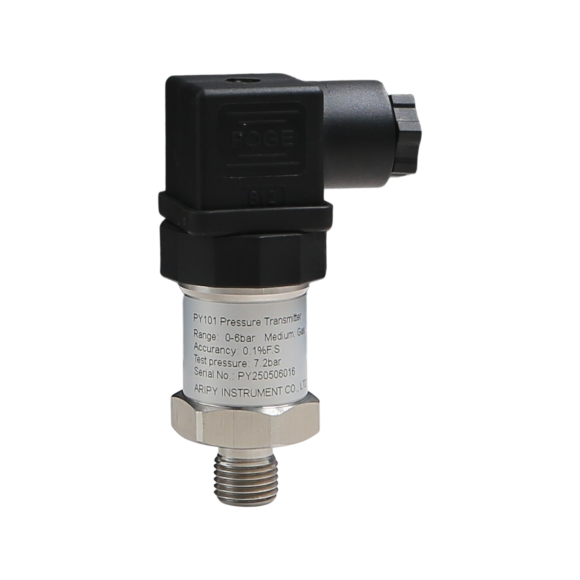

PY101 pressure transmitter
