PY102 Digital Pressure Transmitter

PY 102 digital pressure transmitter adopts high-precision signal processing circuit, linear correction, temperature compensation, accuracy up to 0.05%. It can measure gauge pressure, absolute pressure and compound pressure. The output is RS485 digital signal, using MODBUS protocol, also can be customized protocol.
PY102 digital pressure transmitter has excellent performance, it is anti-interference, overload and shock resistance, temperature drift is small, high stability, has a high measurement accuracy, is the ideal pressure measurement instrument in the ﬁeld of industrial automation.

Applications:

■ Measurement and Experimentation Platforms
■ Calibration Technology
■ Laboratory
■ Plant construction and machine building

Product Features:
■ Measuring ranges : -1 …1,000 bar
■ Accuracy: up to 0.02 % F.S
■ Digital non-linear correction technology, temperature self-compensation technology
■ High precision, small size, robust package
■ RS485\RS232\USB output

■ Pressure ranges: -0.1 ... 1,000 bar

■ Accuracy: 0.02%FS , 0.05%FS , 0.1 % FS

■ Temperature compensation: -10...50 °C

■ Response Time: 0.1~1.6 seconds (depending on range and range ratio) Additional

■ Adjustable Time Constant: 0~32 seconds

■ Long-term stability: 0.1% F.S/year, depending on the range stability index will be diﬀerent Temperature coeﬃcient 0.01% F.S/°C (in -40~85℃, zero and range combined)

■ Power supply: 24VDC

■ Output signals: RS 485, RS 232, USB

■ Overpressure: 5bar or 3×FS, whichever is smaller

■ electrical connection: Hirschmann connector, waterproof connector optional

■ Thread: 1/4NPT, 1/2NPT, G1/2, G1/4,Others can be customized

■ Material: 316L

■ Ambient conditions: -20...70°C with air humidity ≤95%r.h.

■ Weight: 230 g

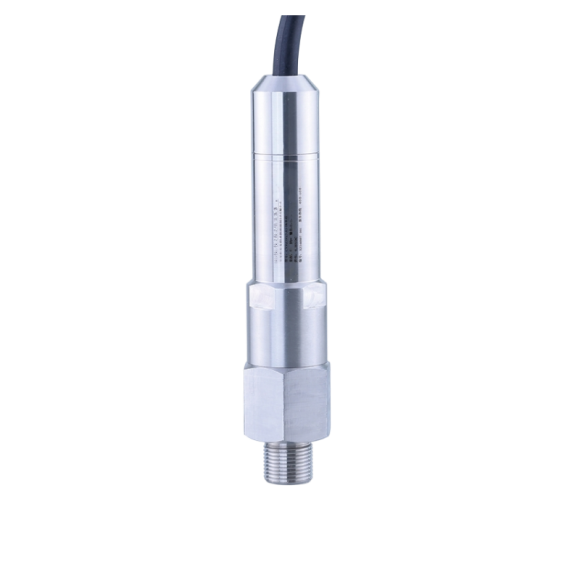

PY102 digital pressure transmitter
