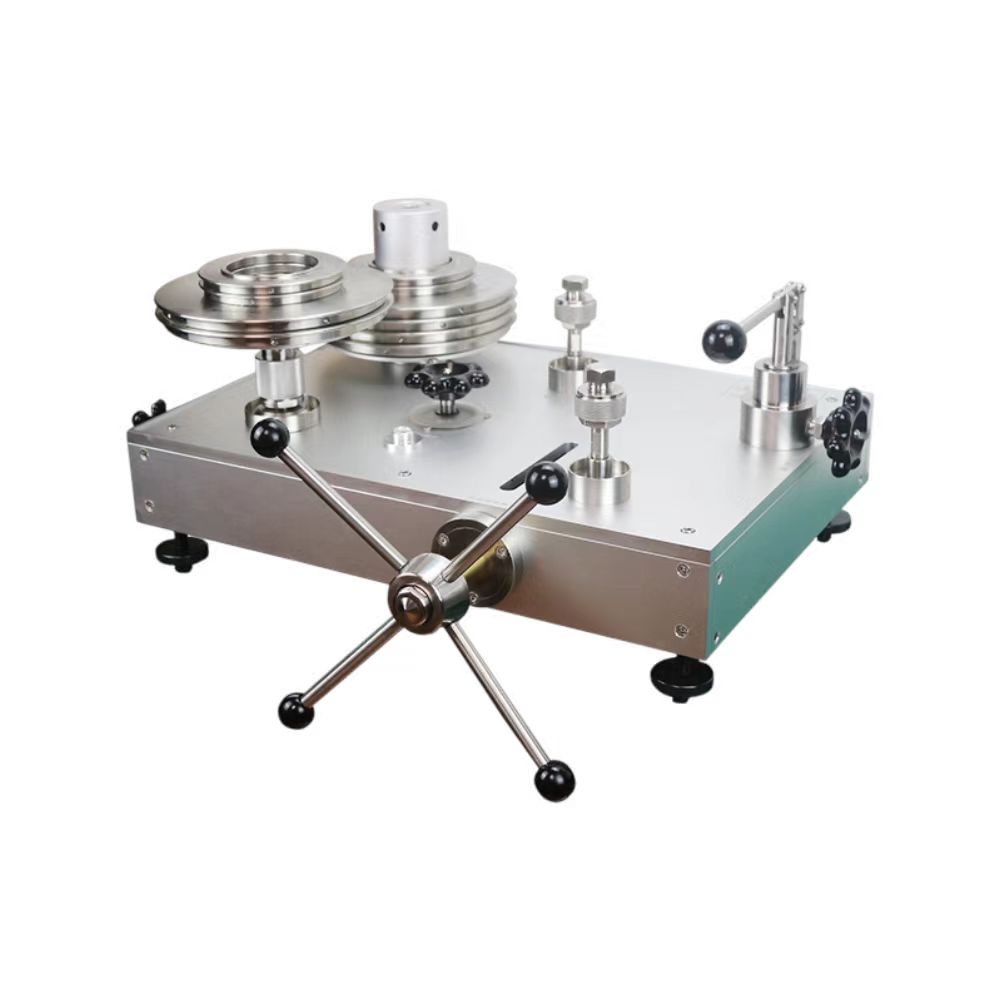

PY 6300 Dead-weight tester features a wide measurement range and high capacity. It is primarily used for calibrating standard pressure instruments such as pressure sensors, pressure transmitters, and digital pressure gauges.
Applications:
■ Calibration service companies and service industry
■ Calibrations directly on-site
■ Maintenance and service facilities
■ Pressure test
Product Features:
■ Measurement Range: (5~2,500) bar, (5~3,000) bar
■ Accuracy : 0.05%, 0.02%, 0.01%, 0.005%
■ Each weight features an adjustment cavity for convenient periodic verification and calibration
■ Equipped with pre-pressurization function for easy pressurization in high-pressure environments
■ Piston cylinder and weights are made of tungsten carbide with precision grinding treatment
■ Operating environment temperature: (20±1)°C, relative humidity: below 8% in constant-temperature chamber
■ Suspended basket structure with anti-breakage device
■ Automatic high/low pressure switching range
■ Two piston measurement systems share one set of weights
