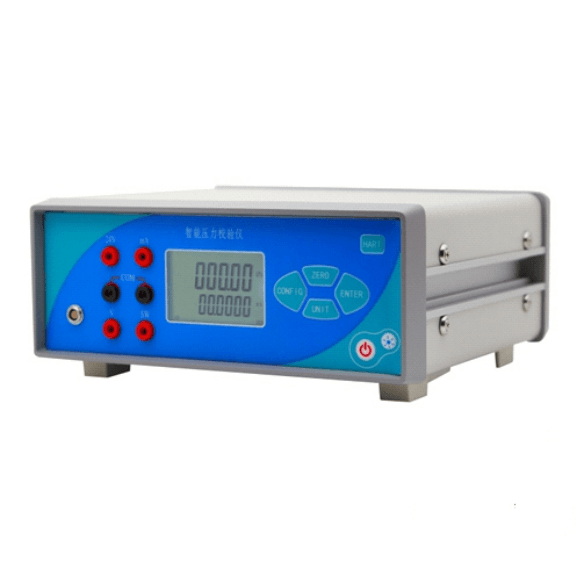

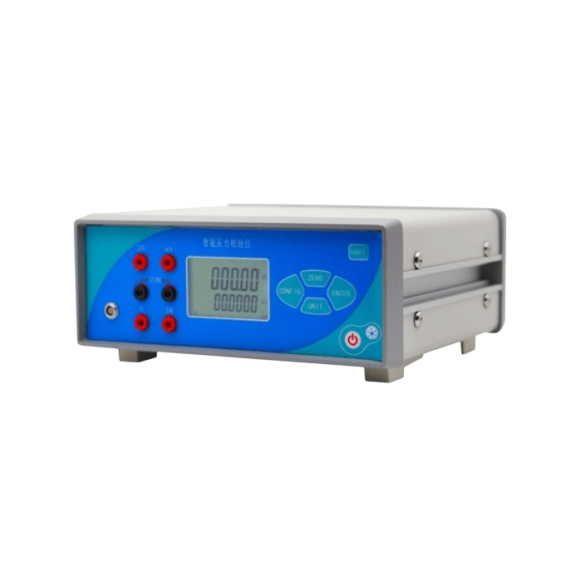

PY802 pressure calibrator

PY 802 Pressure Calibrator with HART protocol, a single range, full scale pressure measurement, high accuracy DC current, voltage measurement and the 24VDC power output function instrument. Can be used to verify the ordinary (precision) pressure gauge, pressure transmitter, pressure regulating valves, pressure switches and pressure of real-time measurement, and can debug the HART smart pressure transmitter.

Applications:

■ Gauge calibration
■ Precision pressure measurement
■ Pressure transmitters calibration
■ Pressure switch and Safety relief valve test
■ Pressure regulator test

Product Features:

■ Pressure ranges : -0.1 … 25,00 bar ,Accuracy: up to 0.02 % F.S (incl. calibration certiﬁcate)
■ Current, voltage, and switching measurements, 24V loop power supplies power the transmitter
■ Built-in pressure module, and can be connected to PY800 intelligent digital pressure module
■ Two-point calibration, user-friendly

■ Pressure ranges: -0.1 ... 2,500 bar
■ Accuracy: 0.02%FS , 0.025 %FS , 0.05 % FS , 0.1 % FS
■ Temperature compensation: -10...50 °C
■ Units: bar ,mbar, Pa, kPa, MPa, PSI, kg/cm², mmH2O, mmHg, inHg
■ Electrical Measured functions
■ Current Measured functions: 0~25.0000mA ,Accuracy: ±0.02%RD+0.003%F.S
■ Voltage Measured functions: 0~25.0000VDC ,Accuracy: ±0.02%RD+0.003%F.S
■ Switch Measured functions：on/oﬀ, case the switch comes with voltage, range(1~12)V
■ Power output： 24vdc±0.5v, Max. Output Current: 50mA, Protect Current: 120mA
■ Display：Multifunctional: LCD, 6 digit, with background lighting Functions Bar Graph, Pressure Units, Pressure Measured Value, Current/Voltage/Switching, Current/Voltage Units, Overpressure Indication 120 % of Full Scale Pressure (F.S)
■ Process connection：1/4NPT, 1/2NPT, G1/2, G1/4,Others can be customized
■ Material： 316L
■ Power supply
■ Battery type： Rechargeable lithium-ion battery ,Operating time: 80 hours
■ Charging time： 3 hours
■ External power supply： 110V/220V power adapter (DC 9V)
■ Interface： RS 232 port
■ Dimensions： Ø 114 mm, D=39mm H=180 mm with protection cap
■ Ambient conditions： -20...70°C with air humidity ≤95%r.h.
■ Weight： 600 g
