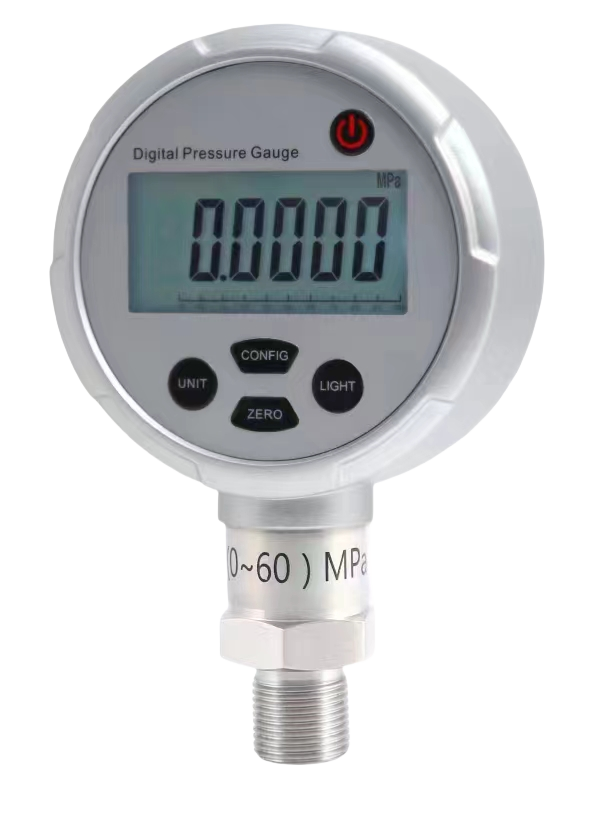

PY803G Precision Digital Pressure Gauge

PY803G Precision Digital Pressure Gauge is very suitable for on-site and laboratory use, to complete the precision pressure measurement and general pressure gauge, pressure instrumentation, digital pressure gauge calibration, etc., it can completely replace the pointer precision pressure gauge.

Applications:

■ Precision pressure measurement
■ Pressure test
■ Maintenance and service facilities
■ Calibration service companies and service industry
■ Field gauge calibration

Product Features:
■ Measuring ranges : -1 … 7,00 bar and also vacuum and absolute and diﬀerential pressure measuring ranges are available
■ Accuracy: up to 0.02 % F.S(incl. calibration certiﬁcate)
■ Automatic temperature compensation from 0 to 50 degrees Celsius
■ Micro-power consumption technology, in the non-sleep state, continuous operation of more than 10,000 hours
■ Maximum and minimum peak recording
■ Over-voltage automatic alarm

■ Pressure types :

Gauge pressure -0.1 ... 2,500 bar
Absolute pressure 0 ... 0.25 bar abs. to 0 ... 60 bar abs.
vacuum and +/- measuring pressure -0.25... 0.25 bar to -1 ... 100 bar
Diﬀerential pressure ±25mbar to ±100mbar

■ Accuracy: 0.02%FS , 0.025 %FS , 0.05 % FS , 0.1 % FS

■ Temperature compensation : -10...50 °C

■ Measuring rate: Max. 10 /s

■ Units : bar ,mbar, Pa, kPa, MPa, PSI, kg/cm², mmH2O, mmHg, inHg

■ Display Type: Multifunctional LCD, 6 digit, with background lighting Functions Bar Graph, Pressure Units, Pressure Measurement, Min/Max, Overpressure Indication 120 % of Full Scale Pressure (F.S)

■ Process connection Thread: 1/4NPT, 1/2NPT, G1/2, G1/4,Others can be customized

■ Material: 316L

■ Auto-oﬀ function: Selectable switch-oﬀ time 5 minutes

■ Battery type: 3x 1.5 V AA and 9vdc external adapter

■ Battery operation: 8,000 h

■ Interface: RS 232 port

■ Housing Dimensions: Ø 100 mm, D=37 mm H=132 mm with protection cap

■ Protective cover: Gray Silicone Protective Case

■ Ambient conditions: -20...70°C with air humidity ≤95%r.h.

■ Weight :450 g
