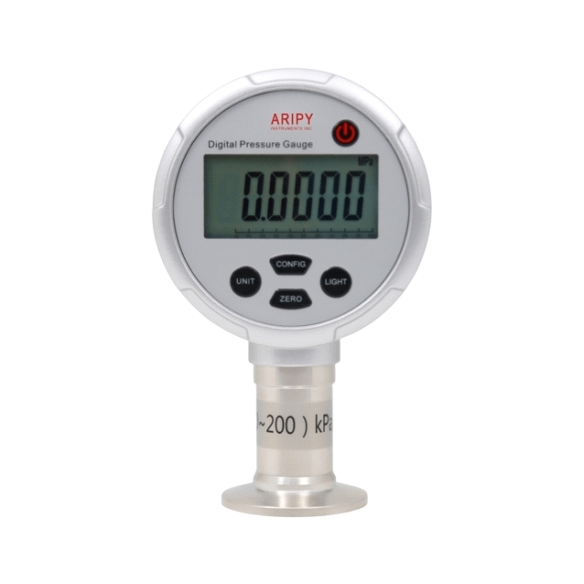

PY803F Flush Diaphragm Pressure Gauge

PY 803F diaphragm pressure gauge is a new design of hygienic digital pressure gauges specially designed for the food and pharmaceutical industry applications, the instrument and the process media contact part of the full use of high-quality 316L stainless steel and ceramic material structure.Installation method in line with health standards of clamps, quick and convenient joints and other international standards of process connection installation interface.

Applications:
■ Pharmaceutical and Biological
■ Processing Dairy and Beverage
■ Processing Food Processing Drinking
■ Water Treatment and Processin

Product Features:
■ Measuring ranges : -0.1 … 350 bar
■ Accuracy: up to 0.05% F.S
■ Media contact part adopts 316L stainless steel and ceramic structure
■ International standard quick installation interface, fast and easy to dismantle and install
■ Planar design, anti-clogging, antiscaling, easy to clean, no pollution

■ Measuring ranges : -0.1 ... 350 bar

■ Accuracy: 0.05 % FS , 0.1 % FS

■ Temperature compensation : -10...50 °C

■ Measuring rate: Max. 10 /s

■ Units : bar ,mbar, Pa, kPa, MPa, PSI, kg/cm², mmH2O, mmHg, inHg

■ Display Type: Multifunctional LCD, 6 digit, with background lighting Functions Bar Graph, Pressure Units, Pressure Measurement, Min/Max, Overpressure Indication 120 % of Full Scale Pressure (F.S)

■ Process connection Thread: M20*1.5

■ Material: 316L

■ Auto-oﬀ function: Selectable switch-oﬀ time 5 minutes

■ Battery type: 3x 1.5 V AA and 9vdc external adapter

■ Battery operation: 8,000 h

■ Interface: RS 232 port

■ Housing Dimensions: Ø 100 mm, D=37 mm H=132 mm with protection cap

■ Protective cover: Gray Silicone Protective Case

■ Ambient conditions: -20...70°C with air humidity ≤95%r.h.

■ Weight :450 g

PY803F Flush Diaphragm Pressure Gauge Datasheets
