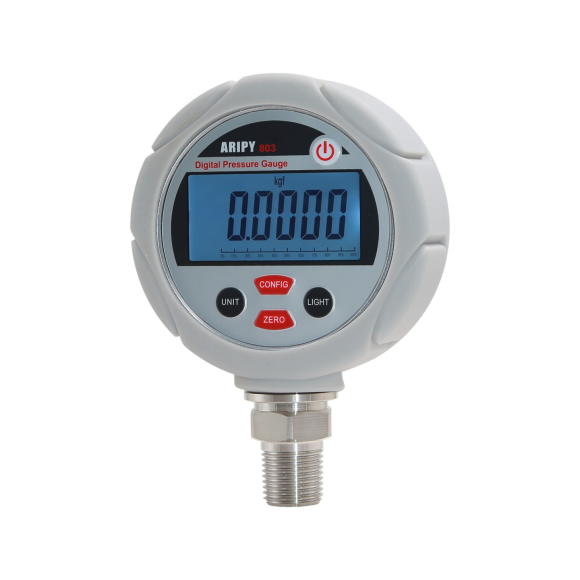

PY803R digital pressure gauge with data logging

PY 803R digital pressure gauge with data logging is mainly used for pressure recording in diﬀerent environments. The product can record 100,000 readings, the storage capacity in similar products is relatively large, power interruption data will not be lost. It can be connected by USB, and the data can be exported to EXCEL table by simple operation with mouse. It can also be used as a pressure standardizer to complete the calibration of a variety of pressure instruments such as general pressure gauges, precision pressure gauges, etc.

Applications:

■ Field Calibration Alternative Chart Recorder
■ Pressure Safety Valve (PSV) Testing
■ Hydro static Testing of Pipelines
■ Leak Testing
■ Wellhead Monitoring Field

Product Features:
■ Measuring ranges : -0.1 … 25,00 bar
■ Accuracy: up to 0.02 % F.S
■ Record up to 100,000 pieces of data
■ USB data export, data can be permanently saved
■ Automatic temperature 0 ~ 50 degrees compensation function
■ Seamless switching between batteries and adapters, suitable for a variety of environments

■ Pressure types :

Gauge pressure -0.1 ... 2,500 bar
Absolute pressure 0 ... 0.25 bar abs. to 0 ... 60 bar abs.
vacuum and +/- measuring pressure -0.25... 0.25 bar to -1 ... 100 bar
Diﬀerential pressure ±25mbar to ±100mbar

■ Accuracy: 0.02%FS , 0.025 %FS , 0.05 % FS , 0.1 % FS

■ Temperature compensation : -10...50 °C

■ Measuring rate: Max. 10 /s

■ Units : bar ,mbar, Pa, kPa, MPa, PSI, kg/cm², mmH2O, mmHg, inHg

■ Display Type: Multifunctional LCD, 6 digit, with background lighting Functions Bar Graph, Pressure Units, Pressure Measurement, Min/Max, Overpressure Indication 120 % of Full Scale Pressure (F.S)

■ Process connection Thread: 1/4NPT, 1/2NPT, G1/2, G1/4,Others can be customized

■ Material: 316L

■ Auto-oﬀ function: Selectable switch-oﬀ time 5 minutes

■ Battery type: 3x 1.5 V AA and 9vdc external adapter

■ Battery operation: 8,000 h

■ Interface: RS 232 port

■ Housing Dimensions: Ø 100 mm, D=37 mm H=132 mm with protection cap

■ Protective cover: Gray Silicone Protective Case

■ Ambient conditions: -20...70°C with air humidity ≤95%r.h.

■ Weight :450 g

PY803R Precision Pressure Recorder Datasheets
