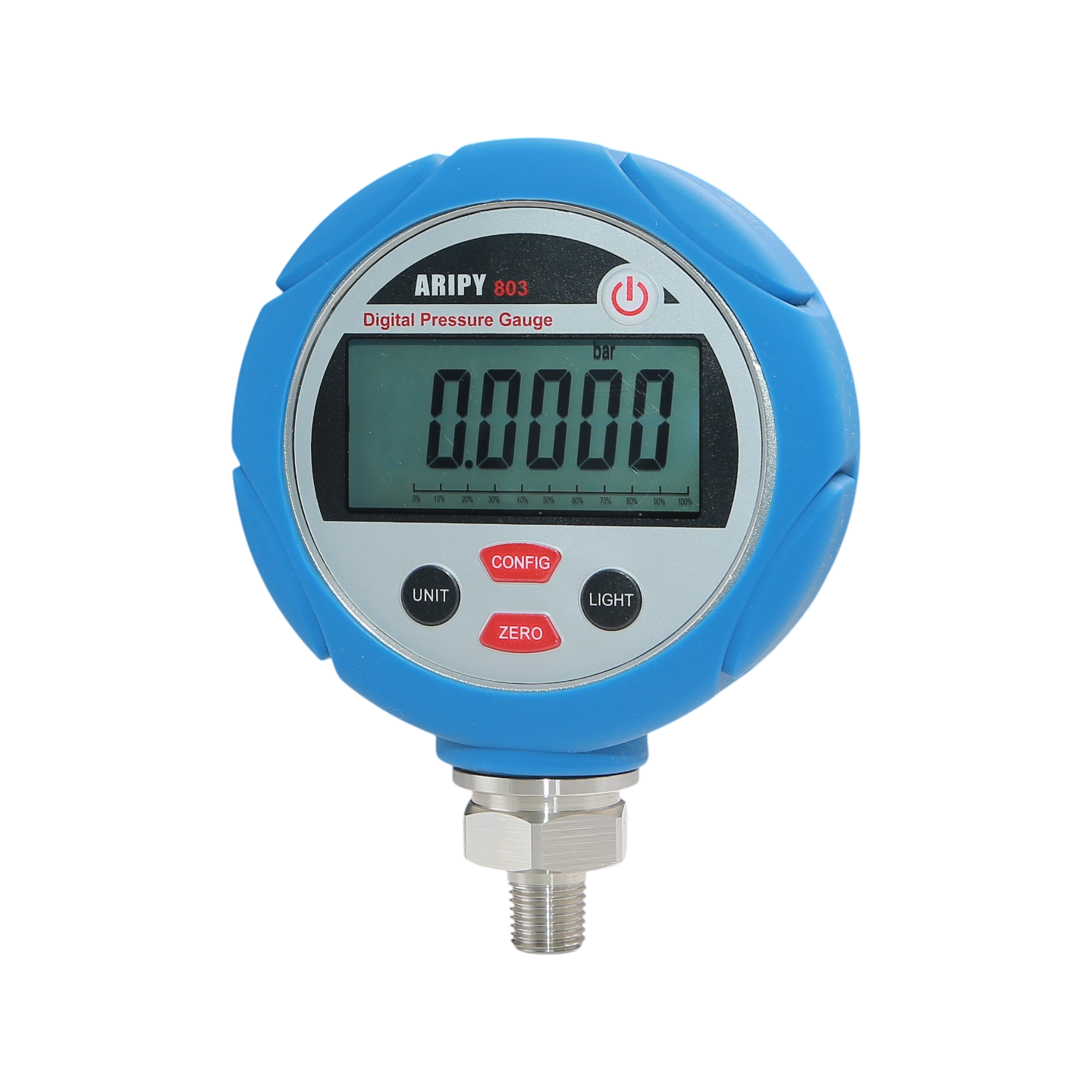

PY803S Output Digital Pressure Gauge

PY 803S output-type digital pressure gauge supports multiple output modes including RS485 communication, USB communication, and (4~20)mA current signals. When paired with communication software, it can directly interface with computers to save, process, and generate reports of measurement data. Analog outputs (4–20 mA, 1–5 V, 0–10 V, 0–5 V) connect to PLCs, with combined measurement and output accuracy reaching 0.02% F.S. Digital output (RS485) employs the MODBUS protocol, allowing users to program custom applications based on the protocol.

Applications:

■ High-precision measurement and control
■ Precision regulation and process
■ Handling Pumps and compressors
■ Hydraulics and pneumatics
■ Mechanical equipment Refrigeration systems

Product Features:
■ Measuring ranges : -1 … 25,00 bar
■ Accuracy: up to 0.02 % F.S
■ 2-wire 4mA〜20mA DC current loop signal output
■ RS485 communication interface, supports ASCII protocol or modbus protocol
■ Passive tuning, range scaling, factory parameter recovery

■ Pressure range: -0.1 ... 2,500 bar
■ Accuracy: 0.02%FS , 0.025 %FS , 0.05 % FS , 0.1 % FS
■ Temperature compensation: -10...50 °C
■ Analog Outputs: 4~20mA, 4~20mA+HART, 1~5VDC, 0~5VDC, 0~10VDC
■ Digital Outputs: RS 485
■ Power supply: 10~30VDC:
■ Units: bar ,mbar, Pa, kPa, MPa, PSI, kg/cm², mmH2O, mmHg, inHg
■ Display: Multifunctional LCD, 6 digit, with background lighting
■ Functions: Bar Graph, Pressure Units, Pressure Measurement, Min/Max, Overpressure Indication 120 % of Full ■ Scale Pressure (F.S)
■ Process connection: 1/4NPT, 1/2NPT, G1/2, G1/4,Others can be customized
■ Material: 316L
■ Dimensions: Ø 100 mm, D=37 mm H=132 mm with protection cap
■ Protective cover: Gray Silicone Protective Case
■ Ambient conditions: -20...70°C with air humidity ≤95%r.h.
■ Weight: 450 g
