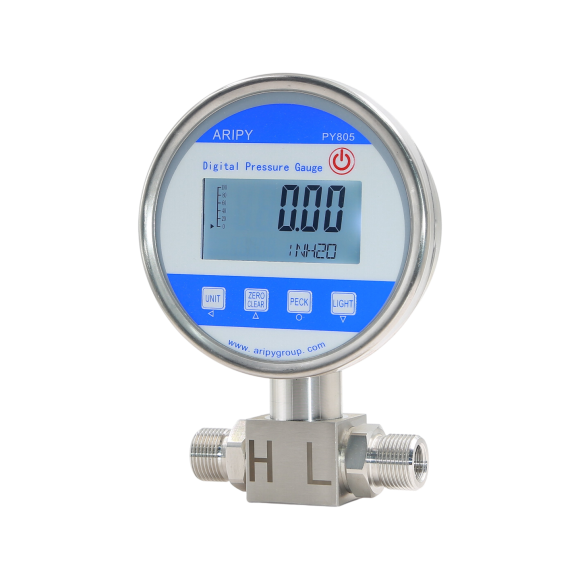

PY805D Digital Differential Pressure Gauge

PY805D digital differential pressure gauge is ideally suited for on-site pressure measurement across various media (liquids and gases). Featuring an all-welded construction, it offers high static pressure tolerance and delivers stable, reliable performance, making it a complete replacement for precision dial pressure gauges.

Applications:

■ Industrial Process Control
■ Diﬀerential Fluid Pressure Measurement
■ Gas and Liquid Pressure Measurement
■ Pressure Calibration Instruments
■ Pressure Leakage Measurement

Product Features:
■ Measuring ranges : -0.1 … 20 bar
■ Accuracy: up to 0.25 % F.S
■ Isolated without “O” ring all-welded construction
■ Suitable for a wide range of ﬂuid media
■ All stainless steel 304
■ High static pressure 200bar
■ Configurable data acquisition rate, auto-shutdown time, and backlight duration
■ Factory reset function

■ Pressure ranges : -0.1 ... 20 bar

■ Accuracy: 0.25%FS , 0.5 % FS

■ Measuring rate: Max. 10 /s

■ Up to 20 pressure units available

■ Display Type: Multifunctional LCD, 5 digit, with background lighting Functions Bar Graph, Pressure Units, Pressure Measurement, Min/Max, Overpressure Indication 120 % of Full Scale Pressure (F.S)

■ Process connection Thread: 1/4NPT, 1/2NPT, G1/2, G1/4,Others can be customized

■ Material: 304

■ Auto-oﬀ function: Selectable switch-oﬀ time 5 minutes

■ Battery type: 3x 1.5 V AA

■ Battery operation: 8,000 h

■ Housing Dimensions: Ø 100 mm, D=37 mm H=132 mm with protection cap

■ Protective cover: Gray Silicone Protective Case

■ Ambient conditions: -20...70°C with air humidity ≤95%r.h.

■ Weight :450 g
