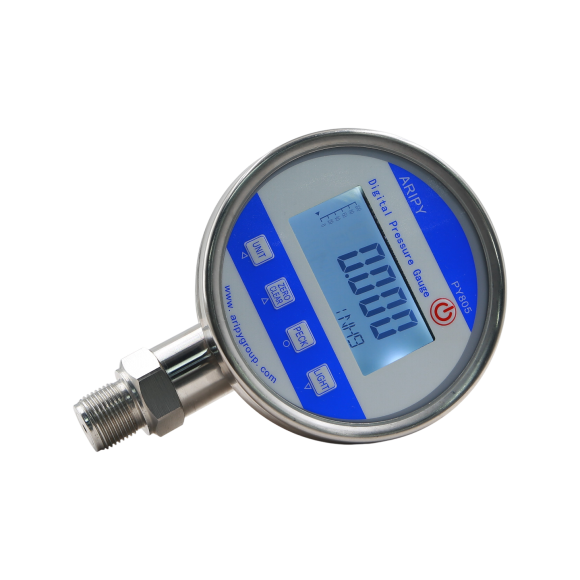

PY805S Output Digital Pressure Gauge

PY 805S output-type digital pressure gauge supports multiple output modes including RS485 communication, Analog outputs (4–20 mA, 1–5 V, 0–10 V, 0–5 V) , with combined measurement and output accuracy reaching 0.25% F.S.

Applications:

■ Electronic System Measurement
■ Pump and Compressor Systems
■ Hydraulic and Pneumatic Equipment
■ Mechanical Equipment Refrigeration Systems

Product Features:
■ Measurement Range: -1 … 2500 bar
■ Accuracy: Up to 0.25% of full scale
■ Analog Output: 4mA–20mA, 1–5VDC, 0–5VDC, 0–10VDC
■ Optional RS485 Communication Interface with Modbus Protocol Support
■ Range Adjustment, Two-Point Calibration, Unit Selection, Factory Default Reset

■ Pressure range: -1 ... 2,500 bar
■ Accuracy: 0.25%FS , 0.5 % FS
■ Analog Outputs: 4~20mA, 4~20mA+HART, 1~5VDC, 0~5VDC, 0~10VDC
■ Digital Outputs: RS 485
■ Power supply: 10~30VDC:
■ Up to 20 pressure units available
■ Display: Multifunctional LCD, 5 digit, with background lighting
■ Functions: Bar Graph, Pressure Units, Pressure Measurement, Min/Max, Overpressure Indication 120 % of Full Scale Pressure (F.S)
■ Process connection: 1/4NPT, 1/2NPT, G1/2, G1/4,Others can be customized
■ Material: 304
■ Dimensions: Ø 100 mm, D=37 mm H=132 mm with protection cap
■ Protective cover: Gray Silicone Protective Case
■ Ambient conditions: -20...70°C with air humidity ≤95%r.h.
■ Weight: 450 g
