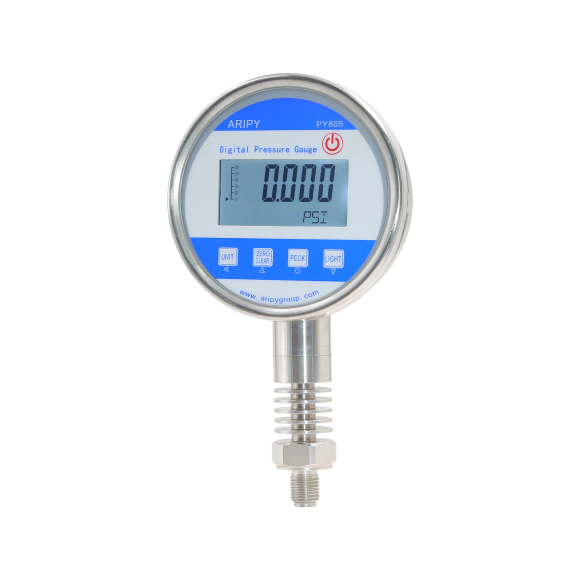

PY805T High Temperature Digital Pressure Gauge

PY805T high-temperature digital pressure gauge utilizes an over-temperature pressure sensor as its measuring element and features a heat sink structure configured for different temperature ranges. It is highly suitable for use in high-temperature environments.

Applications:

■ Steam Pressure Measurement
■ Pressure Measurement at High Temperatures
■ Pressure Leak Measurement
■ Peak Recording Measurement

Product Features:
■ Measuring ranges : -0.1 … 2500 bar
■ Accuracy: up to 0.25 % F.S
■ Stable performance for high-temperature pressure measurement
■ Large 5- digit digital display
■ Resistant to shock, vibration, and corrosion
■ Micro-power technology, more than 8,000 hours of continuous operation without hibernation

■ Pressure types :

Gauge pressure -0.1 ... 2,500 bar
Absolute pressure 0 ... 0.25 bar abs. to 0 ... 60 bar abs.
vacuum and +/- measuring pressure -0.25... 0.25 bar to -1 ... 100 bar
Diﬀerential pressure ±25mbar to ±100mbar

■ Accuracy: 0.25%FS , 0.5 % FS

■ Measuring rate: Max. 10 /s

■ Up to 17 unit options

■ Display Type: Multifunctional LCD, 5 digit, with background lighting Functions Bar Graph, Pressure Units, Pressure Measurement, Min/Max, Overpressure Indication 120 % of Full Scale Pressure (F.S)

■ Process connection Thread: 1/4NPT, 1/2NPT, G1/2, G1/4,Others can be customized

■ Material: 304

■ Auto-oﬀ function: Selectable switch-oﬀ time 5 minutes

■ Battery type: 3x 1.5 V AA

■ Battery operation: 8,000 h

■ Heat sink
