PY861 Precision Pressure Sensors

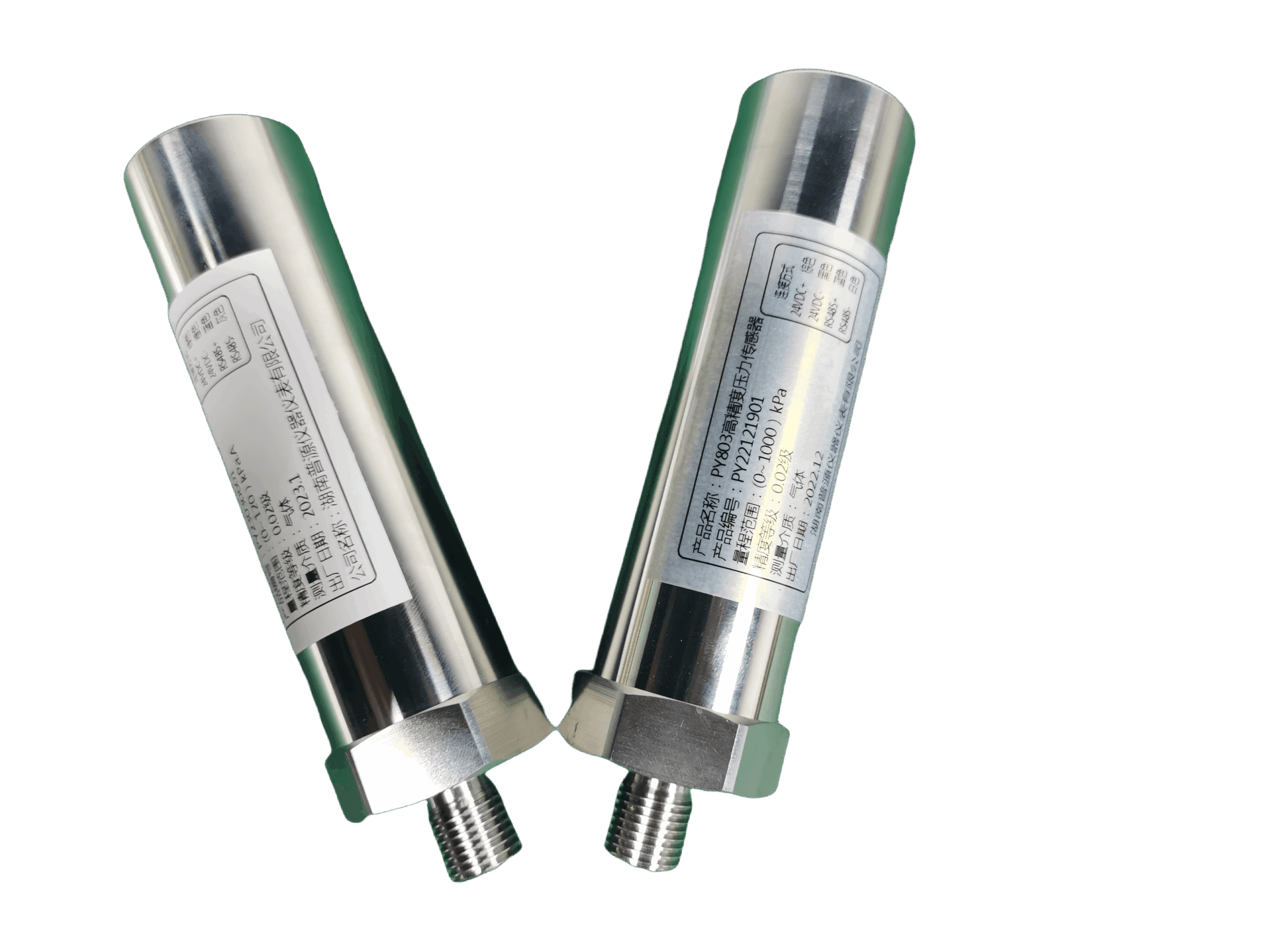

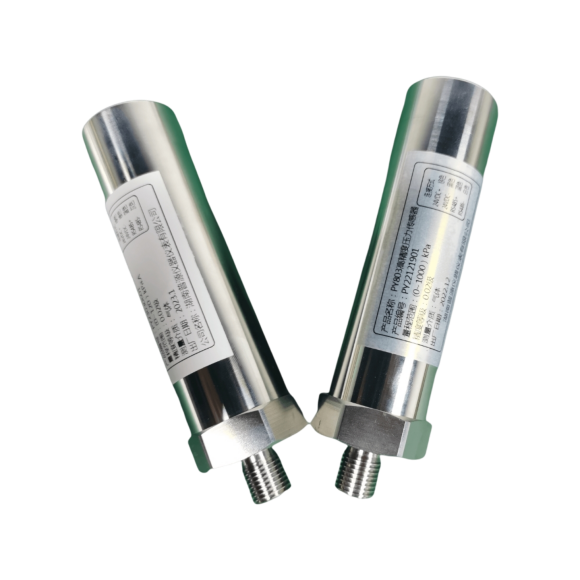

PY861 precision pressure sensors has a microcontroller, 24-bit A/D converter, temperature sensor, etc., DC power supply, can be through RS232 and RS485 and computer communication. At the same time, it can also be used with our pressure calibrator for calibrating pressure transmitters and pressure gauges. Pressure measurement error is not affected by the ambient temperature and has nothing to do with the host computer, the product itself shows the real and reliable value.

Applications:

■ High-precision Pressure Controller Calibration Module
■ High-precision Leakage Measurement
■ High-precision Pressure Measurement
■ Calibration Pressure (Differential Pressure) Transmitter
■ Calibration of Precision Pressure Gauges and General Pressure Gauges

Product Features:
■ Measuring ranges : -10 …10 mbar or -0.1 …2,500 bar
■ Pressure measurement accuracy 0.02%F.S or 0.05%F.S optional
■ 0~50℃ temperature compensation
■ RS232 communication or RS485 communication, can be equipped with software to view the data
■ Can provide 0~10V, 0~20mA, 4~20mA output optional function, analog output, the output accuracy of up to 0.05% F.S, such as the need for higher accuracy need to communicate with the manufacturer
■ Data backup, powerful data error correction function.

■ Pressure ranges: -10 ...10 mbar or -0.1 ...2,500 bar

■ Accuracy Standard: ≤±0.05 % of span
Option: ≤±0.02%of span¹
1) Only for measuring ranges ≥ 0.1 bar

■ Non-linearity (per IEC 61298-2): ≤±0.02%of span BFSL

■ Non-repeatability: ≤±0.1%of span

■ Temperature error in rated temperature range: Rated temperature range: 0 ... 80 °C

■ Mean temperature coefcient of zero point:
Measuring range > 0.1 bar:≤ ±0.01 % of span/10 K

Measuring range ≤ 0.1 bar: < ±0.1 % of span/10 K

■ Mean temperature coefcient of span: ≤±0.02 % of span/10 K

■ Adjustability of zero point and span: Adjustment is made using potentiometers inside the instrument.
Zero point: ± 5 % Span: ± 5 %

■ Response Time: 2ms

■ Analog output: 4〜20mA DC (Load resistance ≤750Ω ) , 0〜10 mA DC (Load resistance ≤1.5KΩ ), 1〜5V DC (Load resistance ≥250K ) , 0〜5V DC (Load resistance ≥250K )

■ Load in Ω Depending on the signal type the following loads apply:
Current (2-wire):≤ (power supply - 10 V) / 0.02 A
Current (3-wire):≤ (power supply - 3 V) / 0.02 A
Voltage (3-wire): > max. output signal / 1 mA

■ Power supply The power supply depends on the selected output signal:
4 ... 20 mA (2-wire): DC 10 ...30 V
0 ... 20 mA (3-wire): DC 10 ...30 VDC
1 ... 5 V(2-wire): DC 10 ...30 V
0 ... 10 V: DC 14 ... 30 VDC
0 ... 5 V: DC 10 ...30 V

■ Overpressure: 5bar or 3×FS, whichever is smaller

■ Electrical connection: 4-pole LEMO aviation plugs

■ Thread: M20×1.5, 1/2NPT, G1/2, G1/4, 1/4NPT or other

■ Material: 316L

■ Communication method: RS485

■ Communication protocol: MODBUS

■ Ambient conditions: -20...70°C with air humidity ≤95%r.h.

■ Weight: 360 g
