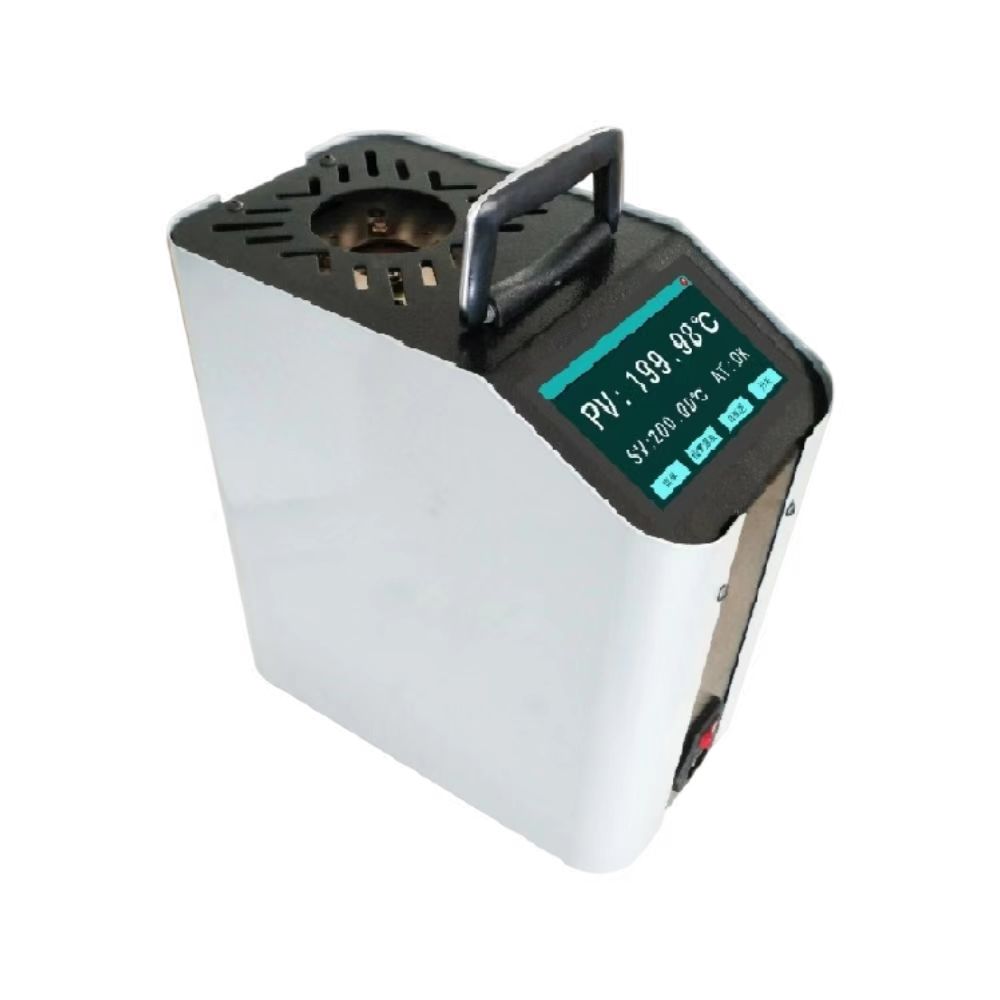

PY851 portable thermostatic calibrators high precision, compact and lightweight for easy portability, multiple probe types accommodate sensor testing and calibration needs across various sizes and quantities, customizable to meet specific user requirements, features a 5.7-inch TFT LCD touchscreen with full touch operation, rapid cooling, and convenient setup, delivers excellent temperature stability with built-in protection functions including load short-circuit protection, load switch protection, and sensor protection.
Product Features:
■ PY851-150
Temperature range: -30℃~150℃
Heating rate: 40min
Display accuracy: ≤±0.1℃
Insertion depth: 160mm
Average heat block diameter: 32mm
Temperature field stability: ≤±0.02℃
Horizontal temperature field: ≤±0.05℃
■ PY851-650
Temperature range: 50℃~650℃
Heating rate: 45min
Display accuracy: ≤±0.5℃
Insertion depth: 150mm
Average heat block diameter: 32mm
Temperature field stability: ≤±0.05℃
Horizontal temperature field: ≤±0.05℃
■ PY851-1200
Temperature range: 300℃~1200℃
Heating rate: 75min
Display accuracy: ≤±1.2℃
Insertion depth: 135mm
Average heat block diameter: 39mm
Temperature field stability: ≤±0.5℃
Horizontal temperature field: ≤±0.25℃
■ Vertical temperature field:
The deviation in the range of 50mm calculated from the bottom of the hole of the soaking block is 1 degree
■ Temperature unit: ℃ or ℉
■ Display resolution: 0.01℃
■ Temp Accuracy: 0.1%
■ maximum power:
Negative temperature type: 500W,
Medium temperature type: 800W,
High temperature type: 3000W
■ Power supply: AC220V/50Hz,optional 110VAC ± 10%
■ Dimensions (mm):
Negative temperature type: 310*190*340mm
High temperature type: 310*190*340mm
Medium temperature type: 250*150*310mm
■ weight(Net weight,Containing packaging)
Negative temperature type: 13kg, 23kg
Medium temperature type: 11kg, , 18kg
High temperature type: 11kg, 20kg
