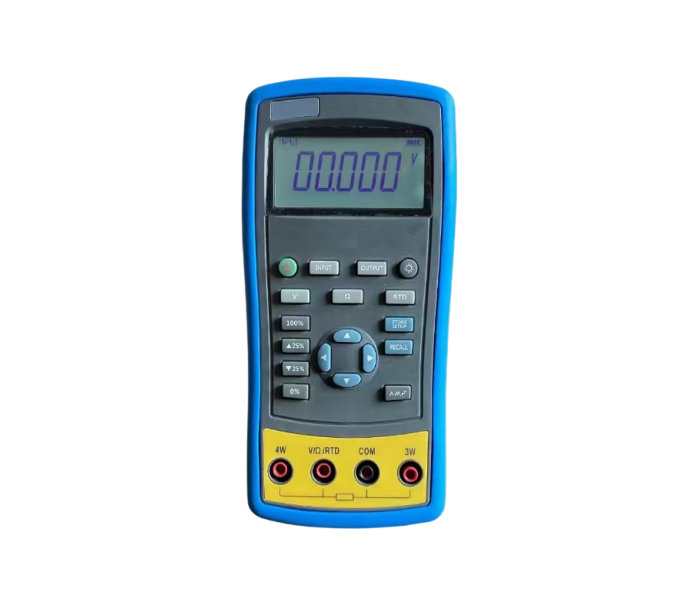

PY 823 RTD process calibrator is a handheld tool used to calibrate RTD (resistance to temperature) transmitters. It can simulate and measure many different types of RTDs and it can also simulate and test resistance.
It can replace the current signal source, voltage signal source, resistance box, electronic potential difference meter, frequency meter and other measurement and calibration instruments. Mainly used in industrial field signal calibration, fault diagnosis; also suitable for chemical industry, military industry and all kinds of research institutes, laboratory signal measurement and calibration.
Product Features:
■ Measuring RTD temperature;
■ RTD output;
■ Accuracy of 0.02%, 0.05%
■ Manual step, auto step, 0~100% step and slope output functions are available;
■ Super protection function: waterproof grade IP67, any signal end misconnection 220V automatic protection;
■ With white LED backlight, and manual backlight adjustment and automatic power off function, suitable for on-site use;
■ Support Pt100, Pt1000, Cu50, Cu100 divisions of RTD;
■ Unique automatic identification of three-wire and four-wire wiring;
■ Adopting standard 7# battery, which is easy for customers to replace and purchase;
