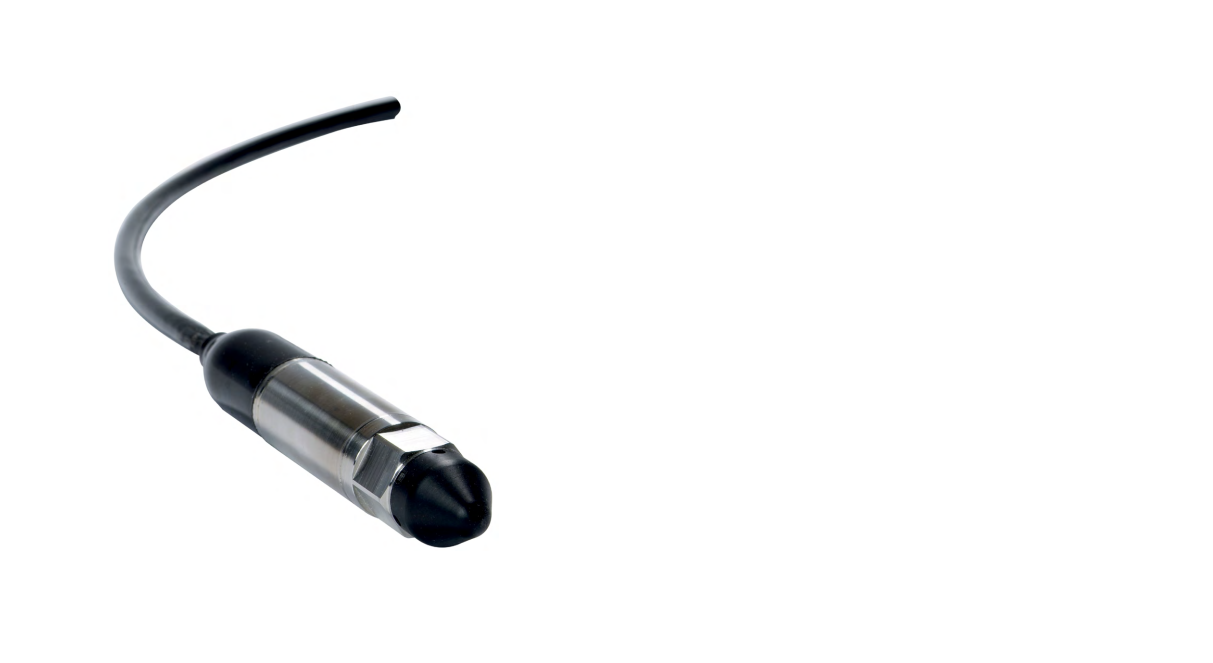

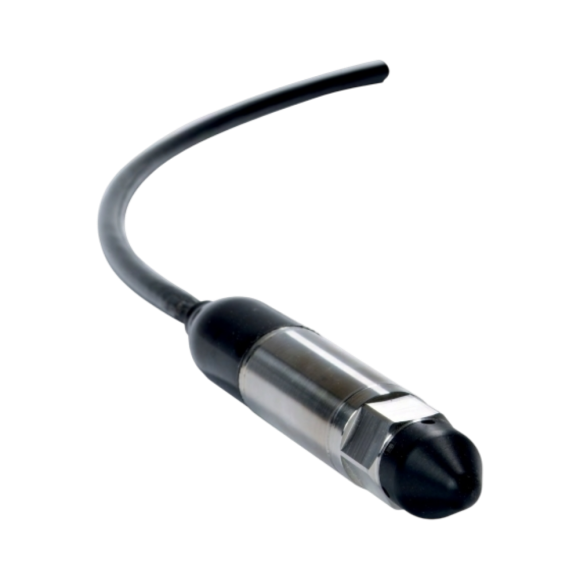

PY862 I2C Pressure Sensors

PY862 pressure sensor has a microcontroller, 24-bit A/D converter, temperature sensor, etc. It is DC-powered and can communicate with other instruments via I2C. It can also be used with our pressure instruments for accurate pressure measurement. The pressure measurement error is not affected by the ambient temperature.

Applications:

■ High-precision Pressure Controller Calibration Module
■ High-precision Leakage Measurement
■ High-precision Pressure Measurement
■ Calibration Pressure (Differential Pressure) Transmitter
■ Calibration of Precision Pressure Gauges and General Pressure Gauges

Product Features:
■ Measuring ranges : -10 …10 mbar or -0.1 …2,500 bar
■ Pressure measurement accuracy 0.02%F.S or 0.05%F.S optional
■ 0~50℃ temperature compensation
■ Communication with other instruments via I2C
■ Data backup, powerful data error correction function.

■ Pressure ranges: -10 ...10 mbar or 0 ...400 mbar

■ Accuracy Standard: ≤±0.5 % of span
Option: ≤±0.1 % or ≤±0.25%of span¹
1) Only for measuring ranges ≥ 0.25 bar

■ Non-linearity (per IEC 61298-2): ≤±0.2%of span BFSL

■ Non-repeatability: ≤±0.1%of span

■ Temperature error in rated temperature range: Rated temperature range: 0 ... 80 °C

■ Mean temperature coefcient of zero point:
Measuring range > 0.25 bar:≤ ±0.2 % of span/10 KMeasuring range ≤ 0.25 bar: < ±0.4 % of span/10 K

■ Mean temperature coefcient of span: ≤±0.2 % of span/10 K

■ Adjustability of zero point and span: Adjustment is made using potentiometers inside the instrument.
Zero point: ± 5 % Span: ± 5 %

■ Response Time: 2ms

■ Analog output: 4〜20mA DC (Load resistance ≤750Ω ) , 0〜10 mA DC (Load resistance ≤1.5KΩ ), 1〜5V DC (Load resistance ≥250K ) , 0〜5V DC (Load resistance ≥250K )

■ Load in Ω Depending on the signal type the following loads apply:
Current (2-wire):≤ (power supply - 10 V) / 0.02 A
Current (3-wire):≤ (power supply - 3 V) / 0.02 A
Voltage (3-wire): > max. output signal / 1 mA

■ Power supply The power supply depends on the selected output signal:
4 ... 20 mA (2-wire): DC 10 ...30 V
0 ... 20 mA (3-wire): DC 10 ...30 VDC
1 ... 5 V(2-wire): DC 10 ...30 V
0 ... 10 V: DC 14 ... 30 VDC
0 ... 5 V: DC 10 ...30 V

■ Overpressure: 5bar or 3×FS, whichever is smaller

■ Electrical connection: Hirschmann connector, waterproof connector optional

■ Thread: M20×1.5 male, M42×1.5 male

■ Material: 316L

■ Ambient conditions: -20...70°C with air humidity ≤95%r.h.

■ Weight: 330 g
