PY108 SERIES

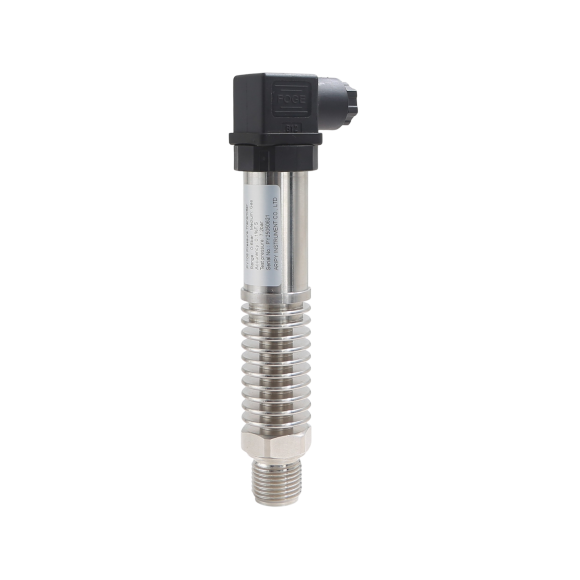

PY108 High Temperature Pressure Sensor

PY108 High Temperature Pressure Sensor is designed for accurate pressure measurement in high-temperature process applications. Featuring a remote heat dissipation structure and a high-temperature resistant sensing element, it delivers stable performance, fast response and reliable long-term operation in demanding industrial environments.

Accuracy 0.1% FS to 0.5% FS

Pressure Range -1~2500bar

Output 0–10 V / 0–20 mA / More Options

Typical Applications

Energy Food HVAC Hydraulic

Request a Quote

Technical Specifications

MEASUREMENT PERFORMANCE

Pressure Range

-1~2500bar

Accuracy

0.1% FS / 0.2% FS / 0.5% FS

Response Time

<10 ms

ELECTRICAL & COMMUNICATION

Output

4–20 mA / 0–10 V / 0–5 V / RS485 / 0–20 mA / 1–5 V

Power Supply

12~36 VDC

MECHANICAL

Process Connection

G1/4 / G1/2 / 1/4 NPT / 1/2 NPT / M20×1.5 / Others / G1/8 / G3/8 / 1/8 NPT / M14×1.5 / 1/4 BSPP / 1/2 BSPP

Weight

<0.5 kg

ENVIRONMENTAL

Operating Temperature

-40~85°C

Protection

IP65

Product Overview

PY108 High Temperature Pressure Sensor is engineered for reliable pressure measurement in applications where process temperatures exceed the operating limits of conventional pressure sensors.

Its integrated heat dissipation structure effectively isolates the sensing element from high-temperature media, ensuring stable accuracy and long service life. Combined with a high-performance stainless steel housing and advanced signal conditioning electronics, the PY108 provides fast response, excellent durability and dependable performance in harsh industrial environments.

Designed for steam systems, thermal process equipment and industrial automation, the PY108 offers an ideal solution for continuous pressure monitoring under elevated temperature conditions.
