PY803D SERIES

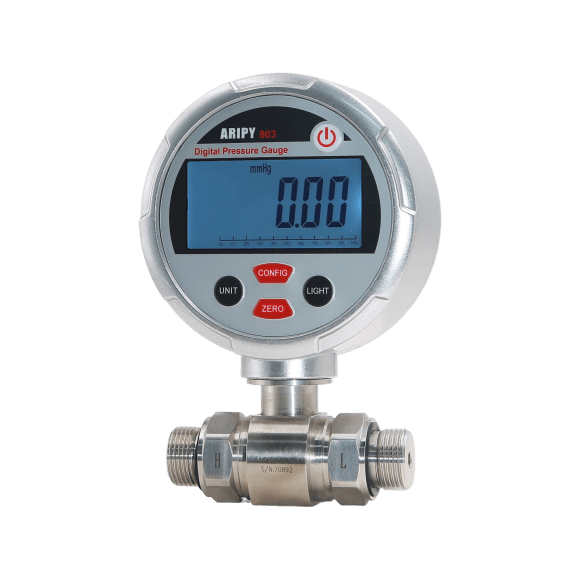

PY803D Digital Differential Pressure Gauge

PY803D Digital Differential Pressure Gauge is designed for accurate differential pressure measurement in industrial processes, calibration laboratories and field service applications. Featuring an all-welded stainless steel construction, high static pressure resistance and accuracy up to 0.02% FS, it provides reliable performance for gas and liquid differential pressure measurement.

Accuracy 0.02% FS to 0.2% FS

Pressure Range -1~20bar

Output 0–10 V / 0–20 mA / More Options

Communication Bluetooth / RS232 / More Options

Request a Quote

Technical Specifications

MEASUREMENT PERFORMANCE

Pressure Range

-1~20bar

Accuracy

0.02% FS / 0.05% FS / 0.1% FS / 0.2% FS

FUNCTIONS & DISPLAY

Display

LCD

ELECTRICAL & COMMUNICATION

Output

4–20 mA / 0–10 V / 0–5 V / HART / 0–20 mA / 1–5 V / PNP / NPN

Communication

Bluetooth / RS232 / RS485

Power Supply

Battery / 9VDC

MECHANICAL

Process Connection

G1/4 / G1/2 / 1/4 NPT / 1/2 NPT / M20×1.5 / Others / 1/4 BSPP / 1/2 BSPP

Weight

1–3 kg

ENVIRONMENTAL

Operating Temperature

-20~70°C

Protection

IP54

Product Overview

PY803D Digital Differential Pressure Gauge is a high-accuracy instrument developed for precise differential pressure measurement in industrial, laboratory and calibration environments.

Its fully welded 316L stainless steel pressure chamber provides excellent resistance to high static pressure and corrosive media while eliminating sealing-ring leakage risks. Supporting differential pressure ranges up to 20 bar and static pressure resistance of 20 MPa, the PY803D delivers stable performance for gas, liquid and industrial process applications.

It is widely used for differential pressure calibration, process monitoring, filter monitoring, pressure testing and industrial instrumentation.
