PY806 SERIES

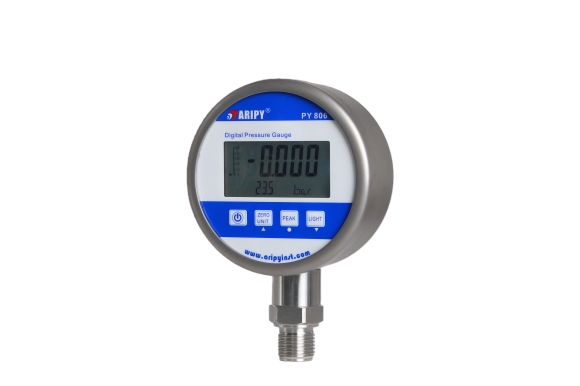

PY806 Digital Pressure Gauge

PY806 Digital Pressure Gauge is designed for reliable pressure measurement in demanding industrial environments. Featuring a rugged stainless steel housing, battery-powered operation, peak value recording and multiple pressure units, it provides dependable performance for field service, process monitoring and general industrial pressure measurement.

Accuracy 0.2% FS / 0.5% FS

Pressure Range -1~2500bar

Typical Applications

Energy Food Hydraulic Oil &amp

Request a Quote

Technical Specifications

MEASUREMENT PERFORMANCE

Pressure Range

-1~2500bar

Accuracy

0.2% FS / 0.5% FS

FUNCTIONS & DISPLAY

Display

LCD

ELECTRICAL & COMMUNICATION

Power Supply

Battery / 9VDC

MECHANICAL

Process Connection

G1/4 / G1/2 / 1/4 NPT / 1/2 NPT / M20×1.5 / Others / 1/4 BSPP / 1/2 BSPP

Weight

0.5–1 kg

ENVIRONMENTAL

Operating Temperature

-20~70°C

Protection

IP65

Product Overview

PY806 Digital Pressure Gauge is an economical yet reliable solution for everyday industrial pressure measurement. Designed to replace traditional mechanical gauges, it combines a rugged stainless steel construction with a clear digital display for improved accuracy and readability.

With long battery life, automatic peak value recording and multiple engineering units, the PY805 is ideal for industrial process monitoring, maintenance, hydraulic and pneumatic systems, as well as harsh outdoor environments where dependable pressure indication is required.
