PY715 SERIES

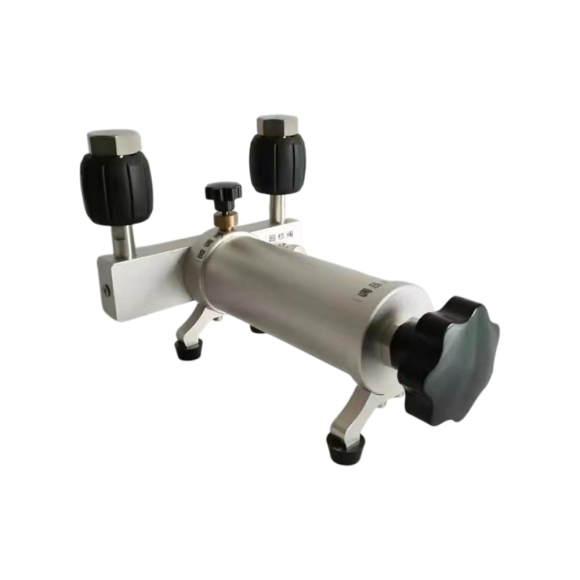

PY715 Low Pressure Pneumatic Test Pump

PY715 Low Pressure Pneumatic Test Pump is designed for generating stable low pneumatic pressure for calibrating pressure gauges, differential pressure transmitters and other low-pressure instruments. It provides precise pressure adjustment and excellent repeatability for laboratory and field calibration.

Accuracy 0.02% FS / 0.05% FS

Pressure Range -0.2~0.2bar / -0.4~0.4bar / More Options

Typical Applications

Calibration HVAC Industrial

Request a Quote

Technical Specifications

MEASUREMENT PERFORMANCE

Pressure Range

-0.2~0.2bar / -0.4~0.4bar / -0.6~0.6bar

Accuracy

0.02% FS / 0.05% FS

MECHANICAL

Process Connection

M20×1.5 / Others

Weight

0.5–1 kg

Product Overview

PY715 Low Pressure Pneumatic Test Pump is a precision pneumatic pressure source designed for low-pressure calibration and testing. It generates stable air pressure for calibrating differential pressure transmitters, pressure gauges, pressure switches and other low-pressure measuring instruments.

Available with pressure ranges of ±0.2 bar, ±0.4 bar and ±0.6 bar, the PY715 offers fine pressure adjustment with 0.5 Pa resolution, quick-release connectors and excellent pressure stability. It is widely used in calibration laboratories, HVAC testing, cleanroom validation and industrial pressure calibration where accurate low-pressure generation is required.
