PY801 SERIES

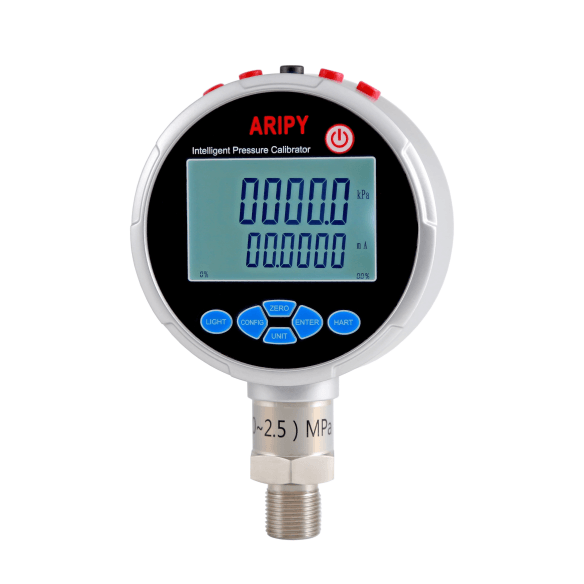

PY801 pressure calibrator
PY801 Portable Pressure Calibrator combines high-accuracy pressure measurement, electrical signal calibration, HART communication, and 24 VDC loop power in one compact instrument for fast and reliable field or laboratory calibration.
Accuracy
0.02% FS to 0.1% FS
Pressure Range
-1~2500bar / 0-60bar.A / More Options
Pressure Type
Absolute / Compound / More Options
Communication
Bluetooth / RS232 / More Options
Typical Applications
Technical Specifications
MEASUREMENT PERFORMANCE
Pressure Range
Vacuum / -1~2500bar / 0-60bar.A
Pressure Type
Gauge / Absolute / Vacuum / Compound / Differential
Accuracy
0.02% FS / 0.05% FS / 0.1% FS
FUNCTIONS & DISPLAY
Display
LCD
ELECTRICAL & COMMUNICATION
Communication
Bluetooth / RS232 / RS485
Power Supply
Battery / 9VDC
MECHANICAL
Process Connection
G1/4 / G1/2 / 1/4 NPT / 1/2 NPT / M20×1.5 / Others / G1/8 / 1/8 NPT / M12×1 / 1/4 BSPP / 1/2 BSPP
Weight
0.5–1 kg
ENVIRONMENTAL
Operating Temperature
-20~70°C
Protection
IP54
OTHER SPECIFICATIONS
Output Power
24vDC,0.5%,Max 100mA
Current Measurement
0~25mA,0.02%F.S+0.003%R.d
Switch Measurement
0~12vDC,on/off
Voltage Measurement
0~25V,0.02%F.S+0.003%R.d
Product Overview
PY801 Series Portable Pressure Calibrators provide accurate pressure and electrical calibration for laboratory, field service and industrial process applications. Designed with integrated HART communication, multifunction electrical testing and high measurement accuracy, the PY801 series delivers a reliable solution for calibration professionals worldwide.
Key Specifications:
- Accuracy: Up to ±0.02% FS
- Pressure Range: Vacuum to 700 bar
- Functions: Pressure, mA, V, Switch Test
- Communication: HART Protocol
- Loop Power: 24 VDC Output
- Display: 6-digit LCD with Backlight
Applications:
- Pressure Gauge Calibration
- Pressure Transmitter Calibration
- HART Device Configuration
- Process Instrument Maintenance
- Field Calibration Service
- Laboratory Pressure Testing
Custom Manufacturing
When the conventional products can not meet your needs, we can provide you with customized services according to the technical parameters.
